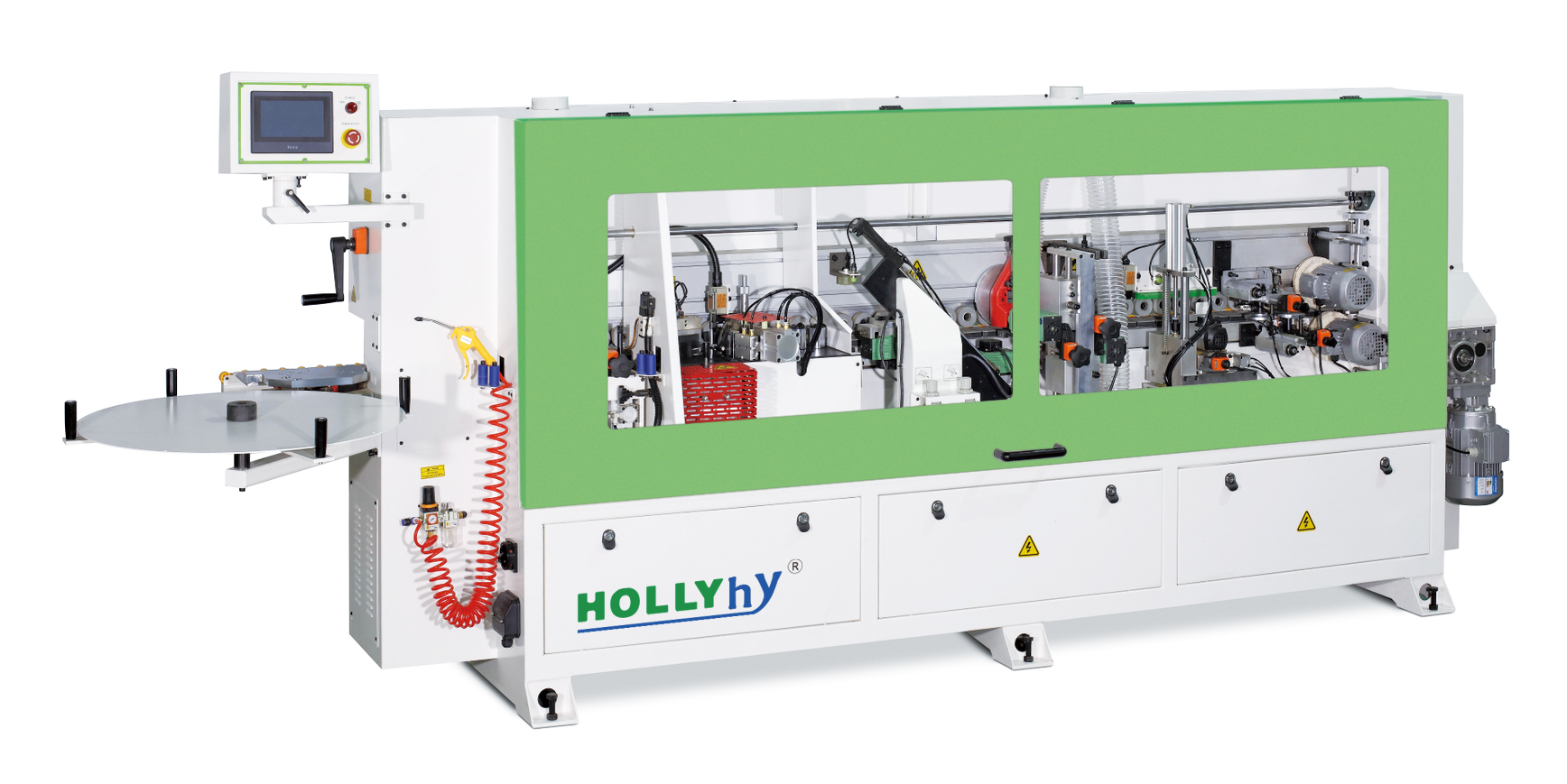

Compacted 、Versatility and high machining quality edge banding machineHY264J with pre-milling unit and corner rounding unit . With the new Corner rounding unit will be obtain high quality finished products, without further processing, allowing a considerable saving of time and increasing ease of processing.
Due to its advanced technological solutions designed to ensure perfect panel finishing. It is simply the perfect edge bander for companies who require continuous and high quality edge banding of panels
Noroeste
Poder
Extra grande
| Model | HY264J |
|---|---|
| Panel length | Min120mm |
| Panel width | Min80mm |
| Panel thickness | 12-55mm |
| Edge thickness | 0.4-3mm |
| Feeding speed | 13m/min |
| Air pressure | 0.6Mpa |
| N.W | 1050KG |
| Power | 7.94kw |
| Oversize | 4180*1110*1500mm |
| Packing size | 3730*760*1500mm |

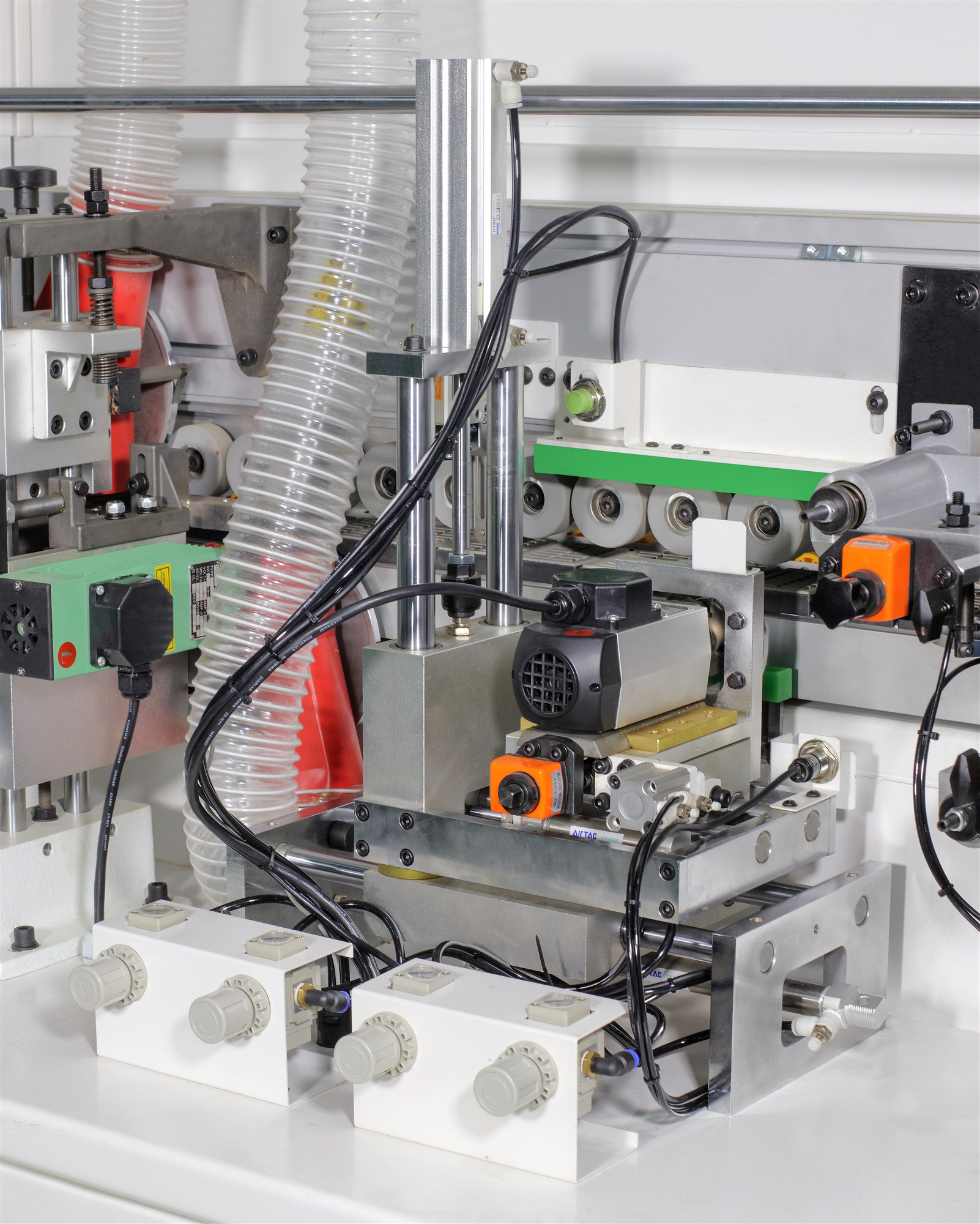

Pre-milling:Two diamond milling tools rotating with high speed in apposing directions, ensure a precise
machined edge, before the edge material is attached.the processing height can be reached 55mm.
Corner rounding :Rounding of front and rear edge angle on straight, chamfered and post-formed panels.
The operation is automatically carried out by the unit and get an optimal finishing, without necessity of
further machining.
R scarpper :removed by the light scraping of the radius knife，ensure the smooth finish.
Optional installation of spray unit for application of polishing spray, prior to buffing.
