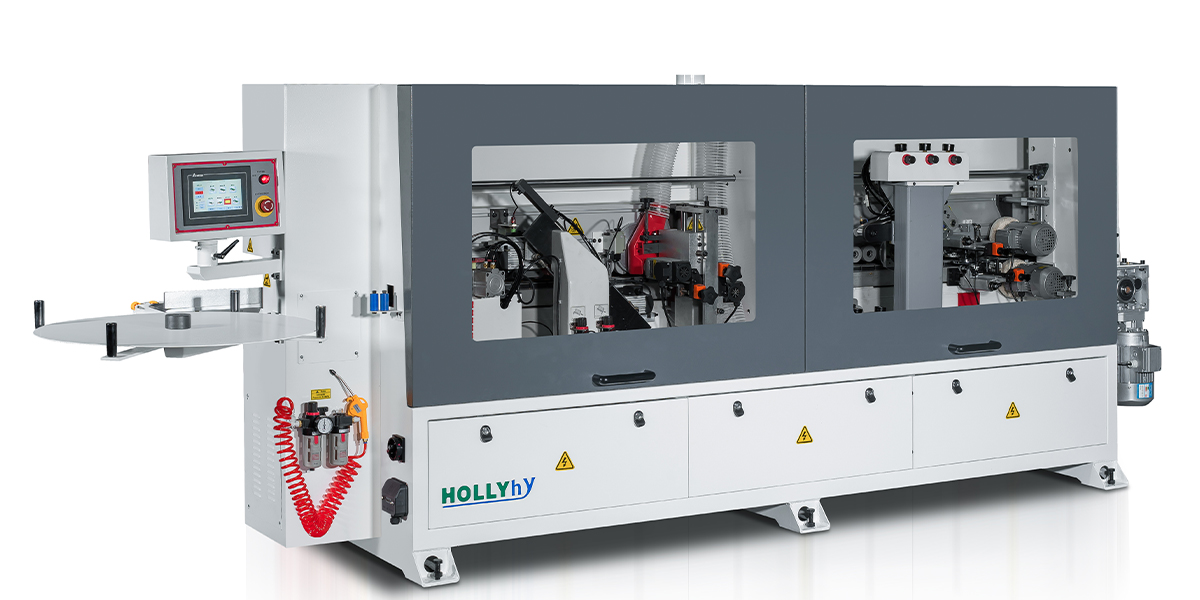

HY460 EDGE BANDER

HY460 EDGE BANDER

HY460 with more faster feeding speed and it can be reached to 13m/min,the corner rounding function with two high frequency motor can satisfy customers who pursue perfect finishing

1020KG

N.W

6.19KW

Power

3710*712*1462mm

Packing size

REQUEST A QUOTE >

SPECIFICATION

ModelHY460J
Panel lengthMin120mm
Panel widthMin80mm
Panel thickness10-50mm
Edge thickness0.4-3mm
Feeding speed13m/min
Air pressure0.6Mpa
N.W1020KG
Power6.19kw
Oversize4160*1110*1500mm
Packing size3710*712*1462mm

STANDARD ACCESSORIES

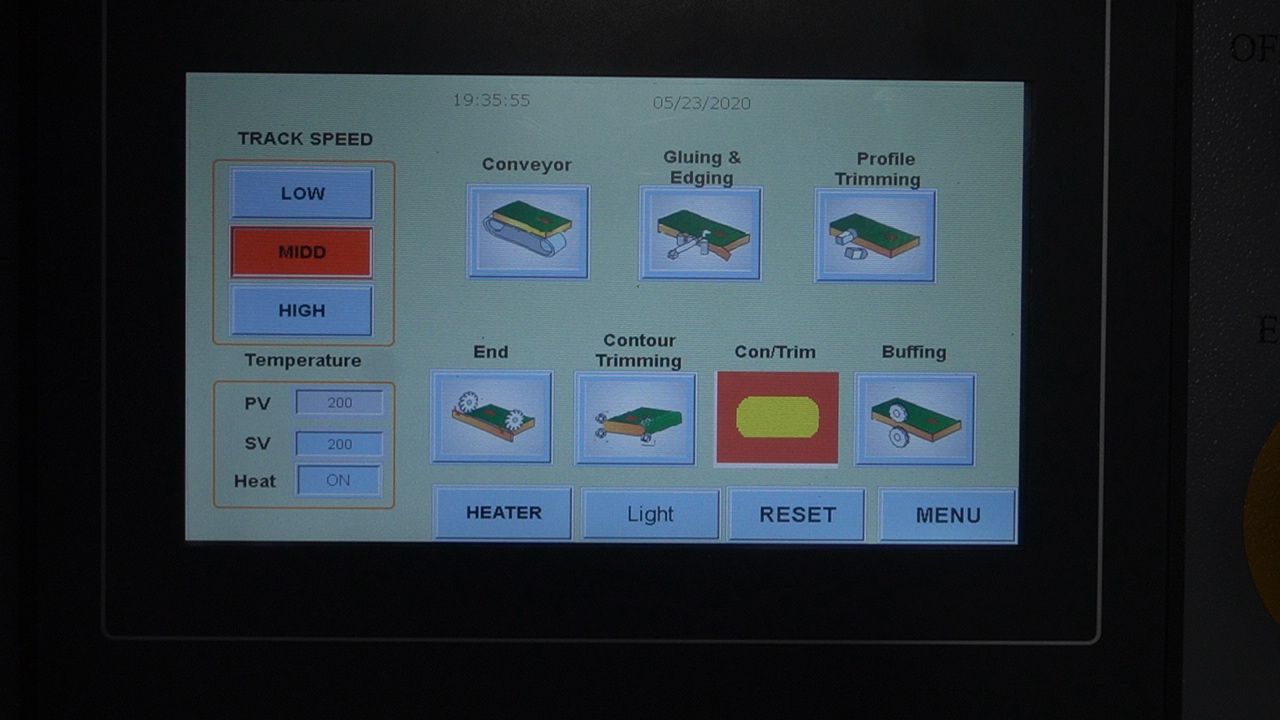

Touch Screen Control: only "touch" the button can use the machine.Error free machining

with the touch-screen display , intuitive and easy to select the main machine functions.

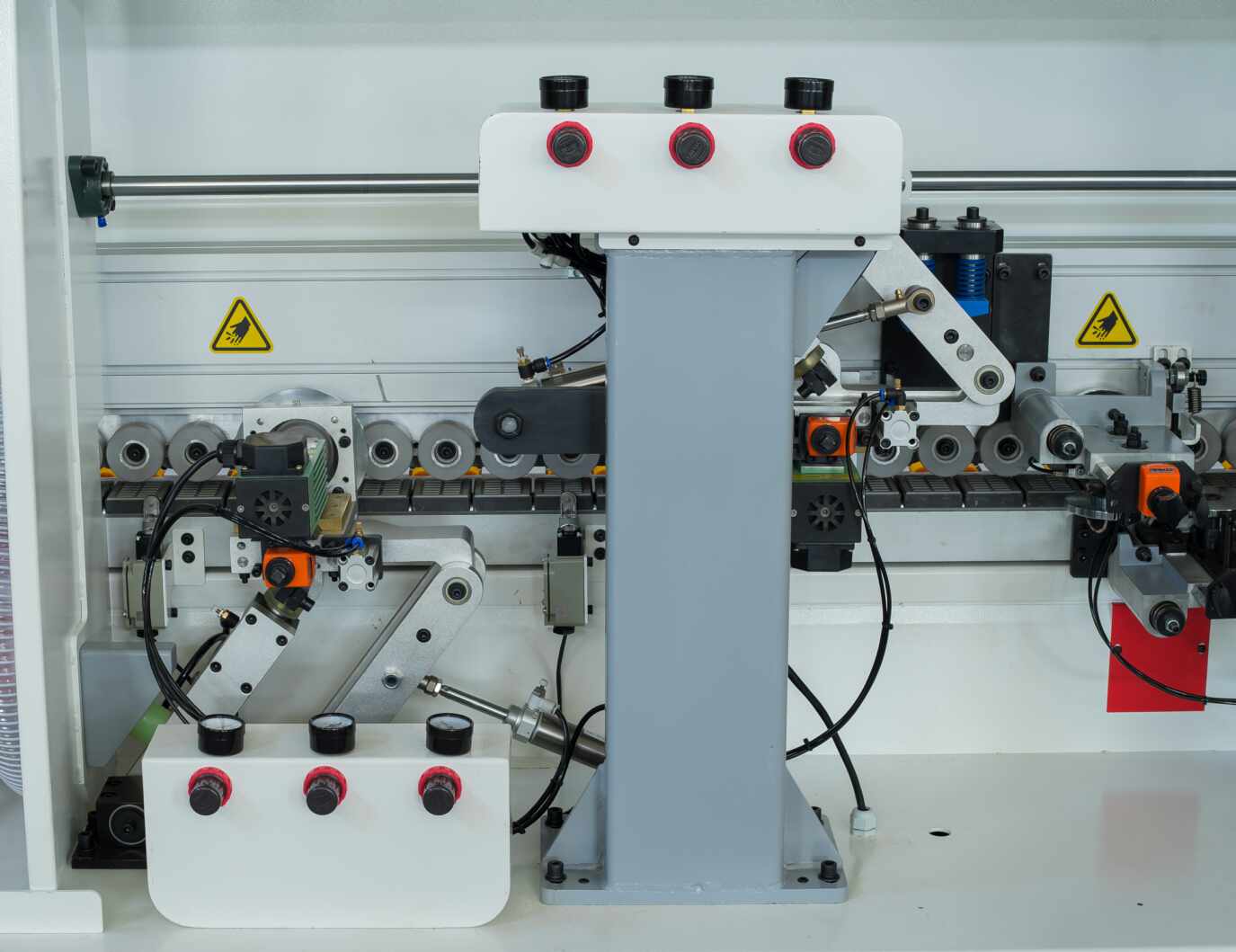

End cutting :With two high speed motor with power 0.35kw for each motor and high precision

linear guide guarantee for perfect cutting results.




Fine trimming :With two high speed motor ,adjustment through the counter convenience

and quickly.2 mm radius tooling is included as standard.

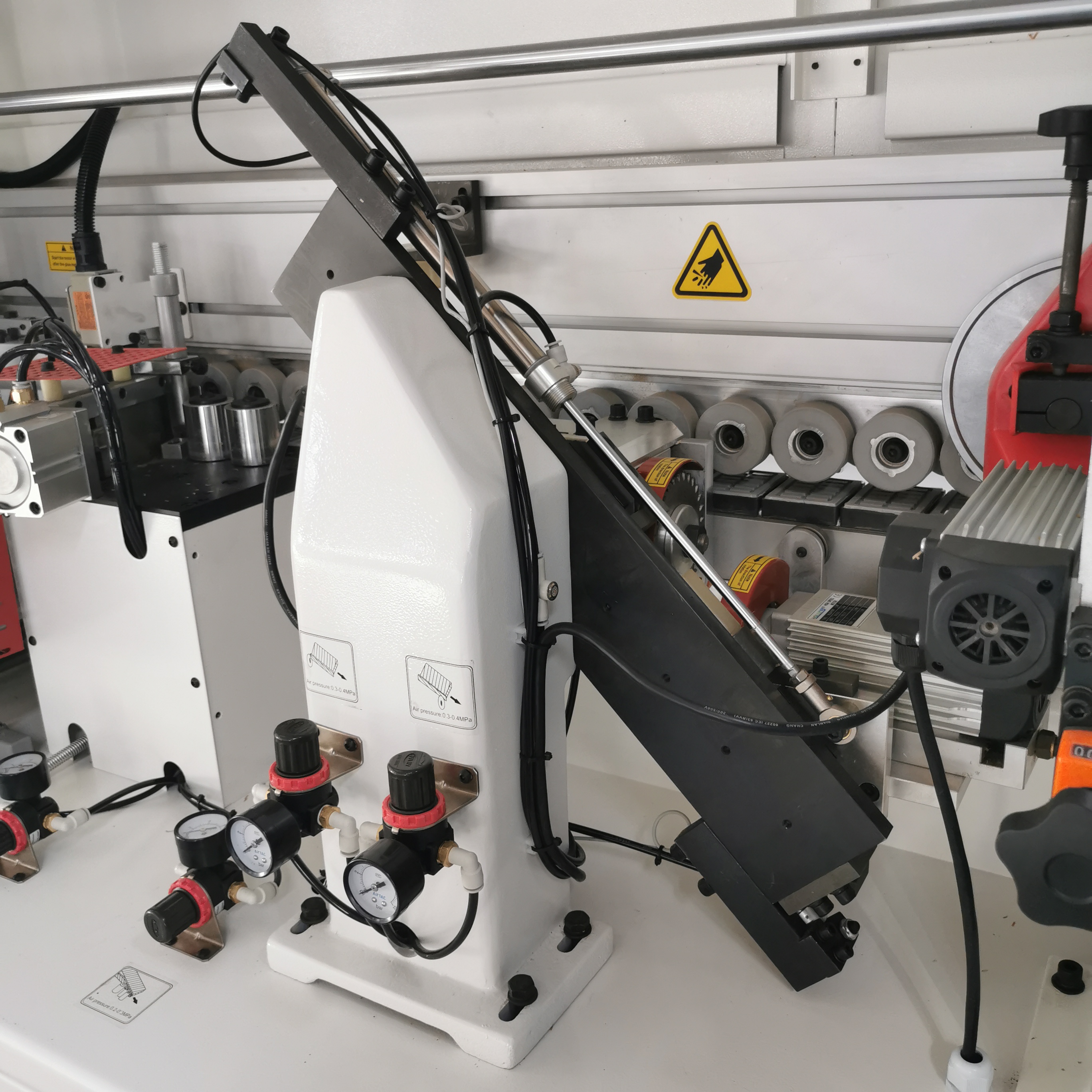

Corner rounding:Rounding of front and rear edge angle on straight, chamfered and post-formed

panels. The operation is automatically carried out by the unit and get an optimal finishing, without

necessity of further machining.




Optional installation of spray unit for application of polishing spray, prior to buffing.
