HY35Z

HY35Z

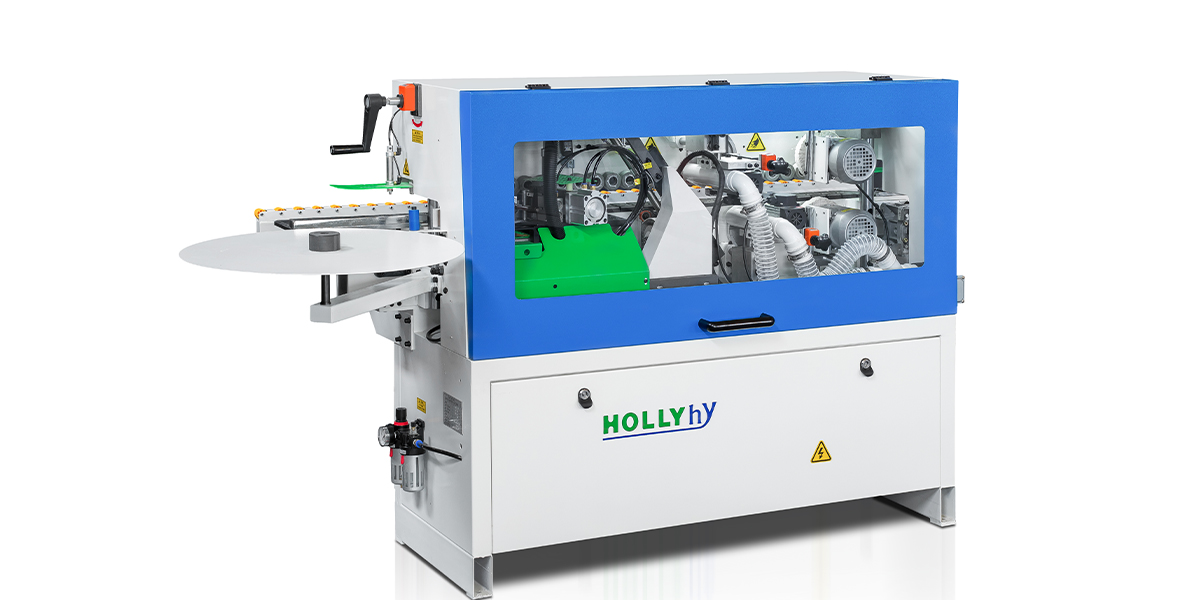

HY35ZP is the smallest automatic edge bander machine with chain conveyor and with a length of 2 meters it fits in Small and medium-sized furniture factory allowing high reliability of the equipment at a low cost, compact, light weight, high quality.

470KG

N.W

3.59KW

Power

2000*670*1260mm

Oversize

REQUEST A QUOTE >

SPECIFICATION

ModelHY35Z
Panel lengthMin70mm
Panel widthMin80mm
Panel thickness12-43mm
Edge thickness0.4-2mm
Feeding speed7m/min
Air pressure0.6Mpa
N.W470KG
Power3.59kw
Oversize2310*1080*1230mm
Packing size2000*670*1260mm

STANDARD ACCESSORIES

Touch Screen Control: only "touch" the button can use the machine.Error free machining with

the touch-screen display , intuitive and easy to select the main machine functions.




End cutting :Single high speed motor with power 370w  and high precision linear guide guarantee

for perfect cutting results.

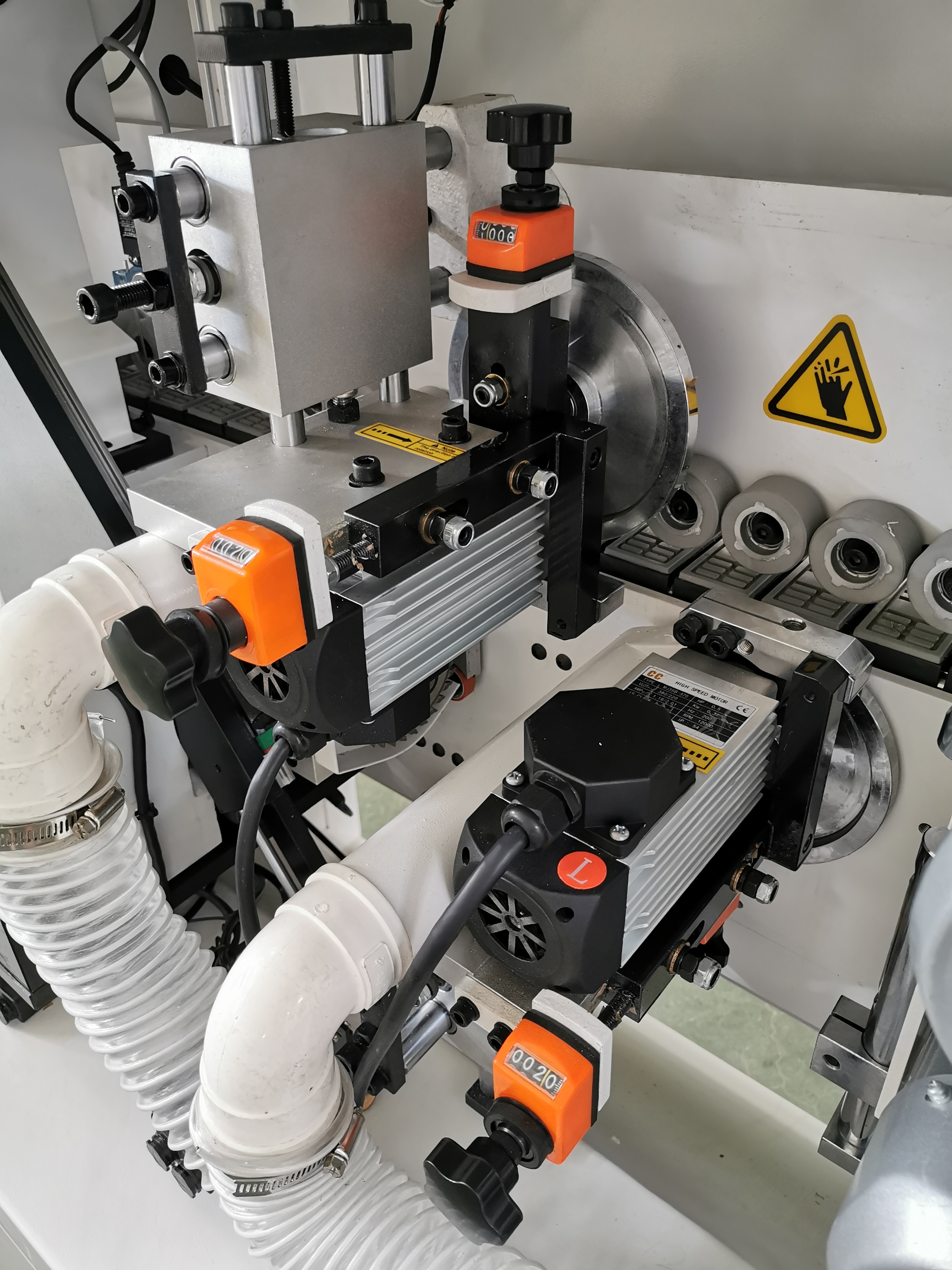

Fine trimming :With two high speed motor ,adjustment through the counter convenience

and quickly.2 mm radius tooling is included as standard.
