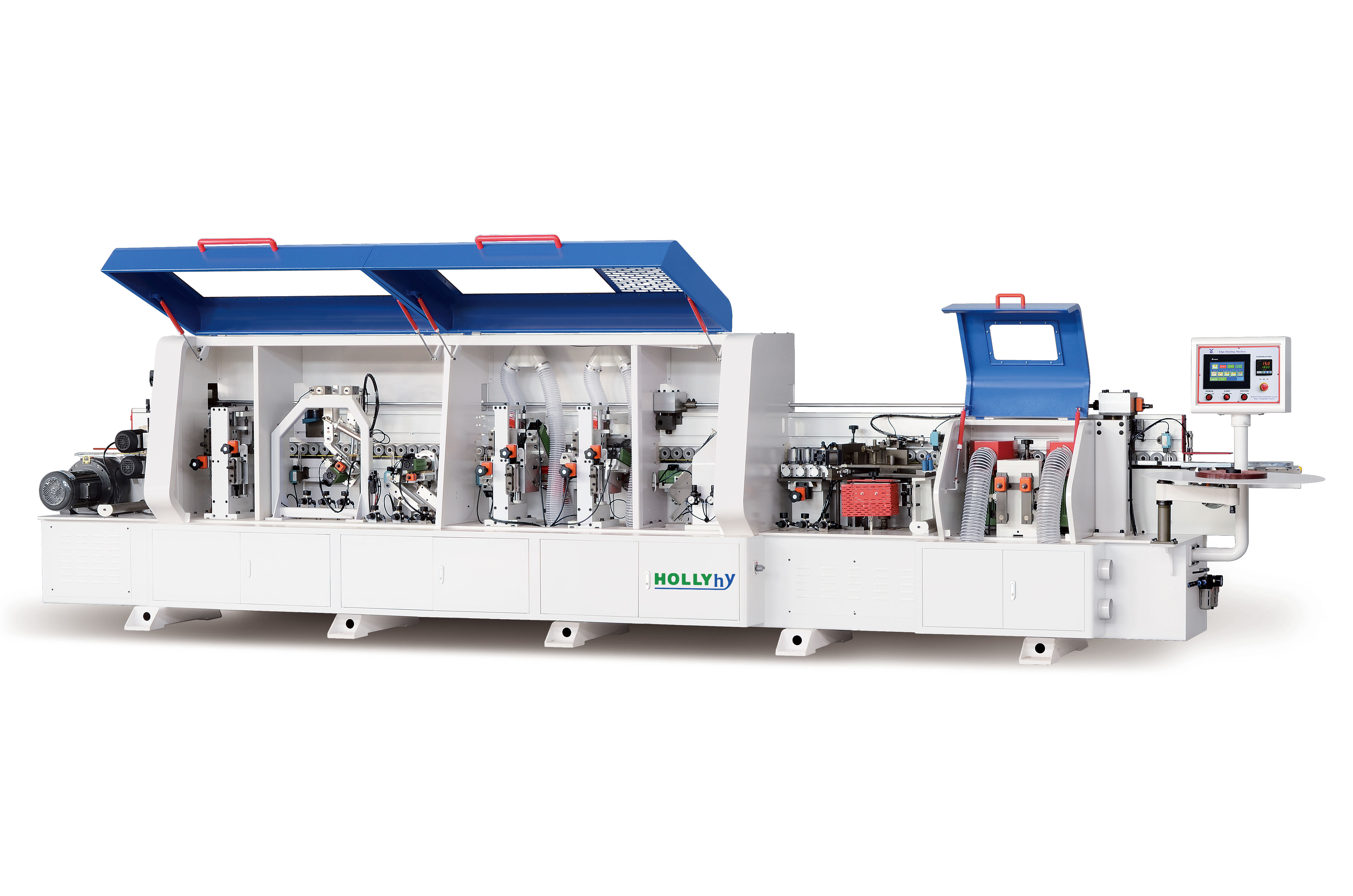

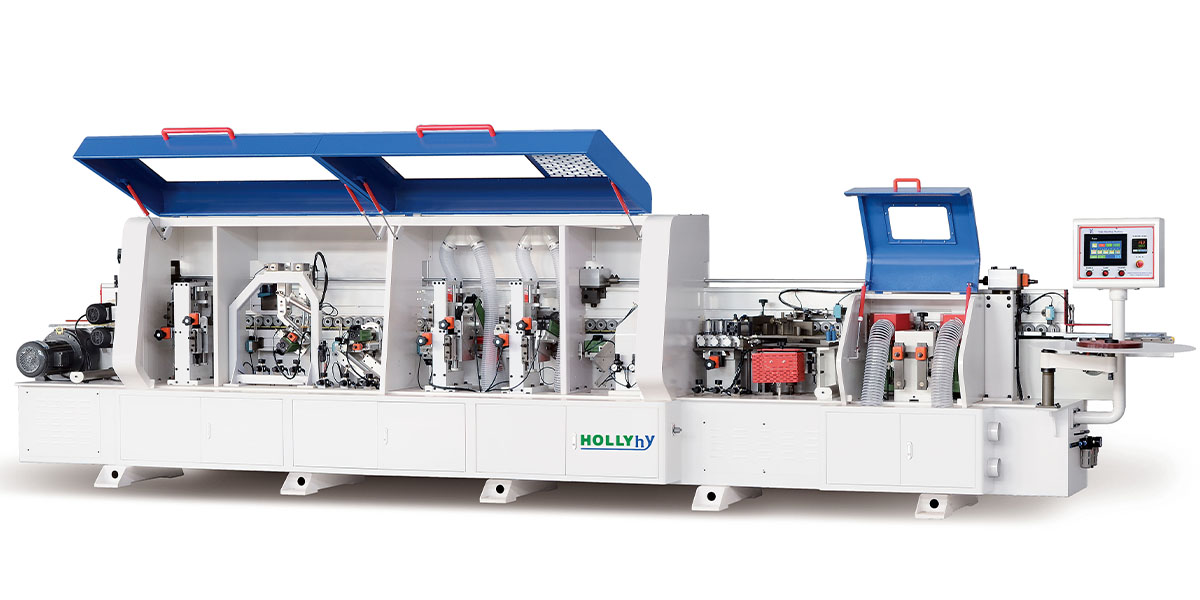

HY468J EDGE BANDER

HY468J EDGE BANDER

A complete range of industrial production line edge banding machines for small- and medium-scale firms.

This type of edge banding machine has reliable quality, outstanding stability, design quality and good rigidity as well as continuous technical updates

High quality and performance HY468J edge banding machine is designed for companies requiring to process many panels per day even though they may be different from one to another. HY468J has several solutions that guarantee always the best machining on any panel type

2450KG

N.W

16.5kw

Power

6600*1000*1500mm

Oversize

REQUEST A QUOTE >

SPECIFICATION

ModelHY468J
Panel widthMin80mm
Panel thickness10-60mm
Edge thickness0.4-3mm
Feeding speed12-20m/min
Air pressure0.6Mpa
N.W2450KG
Power16.5kw
Packing size6600*1000*1500mm

STANDARD ACCESSORIES

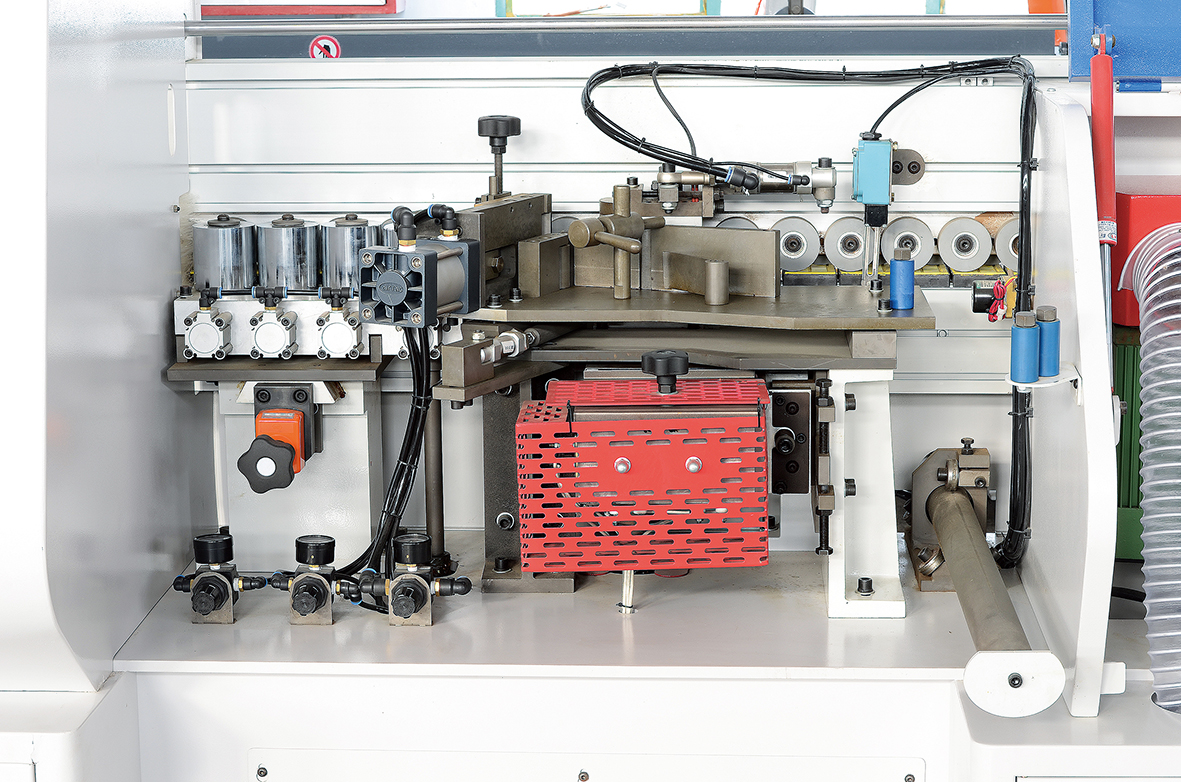

The pre-milling unit before gluing can remove the redundant parts on the edge of the workpiece

and keep the workpiece in accurate geometry shape.





Door of the glue pot can be closed automatic ,preventing the glue water blocked.Double spiral

glue feeding system supply sufficient glue feeding to the panel.

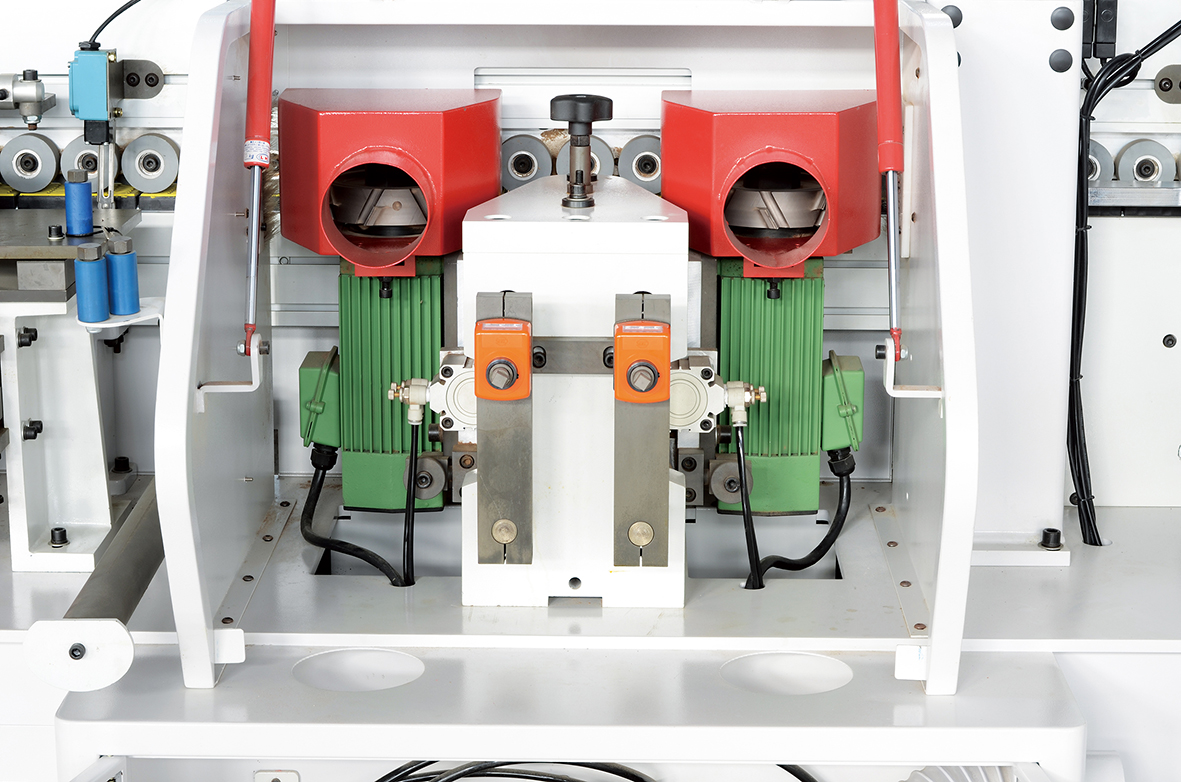

High speed motors make  sure end cutting stable and perfect .




With corner rounding unit ,ensures perfect tactile and visual effects of workpieces,it will be

have four difference copying effects.
