N.W
Power
Oversize

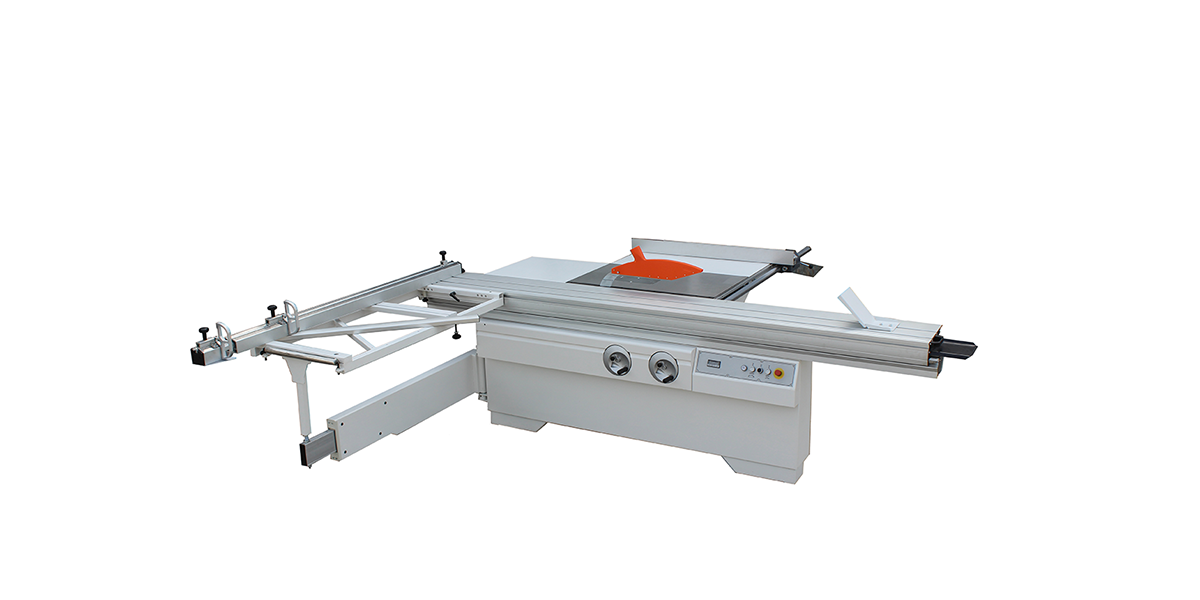

| Model | HY400C |
|---|---|
| sliding beam | 3200*433mm |
| main blade D | φ300*30 |
| scoring blade D | 120*20 |
| max depth cut 90° | 140 |
| max depth cut 45° | 97 |
| main blade speed | 3000/4000/5000 |
| scoring blade speed | 8200 |
| main motor | 5.5kw |
| scoring motor | 1.1kw |
| weight | 760kg |
Much bigger cutting height ,support φ400 blade ,much wider cutting
speed range 3/4/5rpm

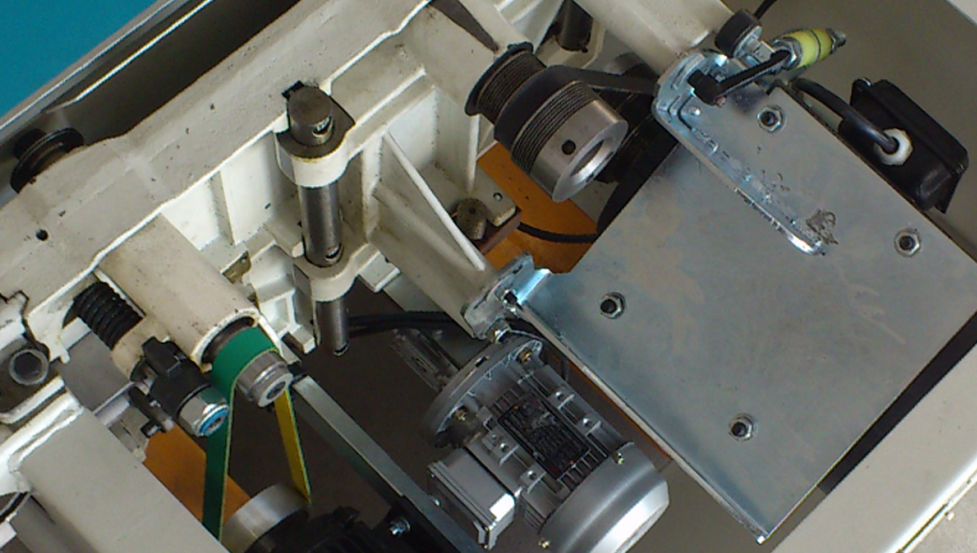

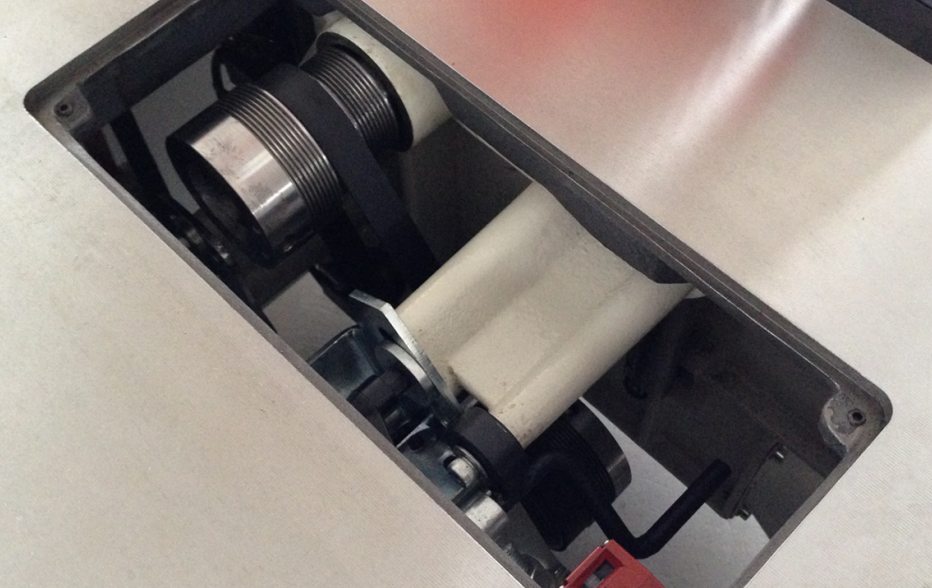

More convenient to change belt,faster and more safety

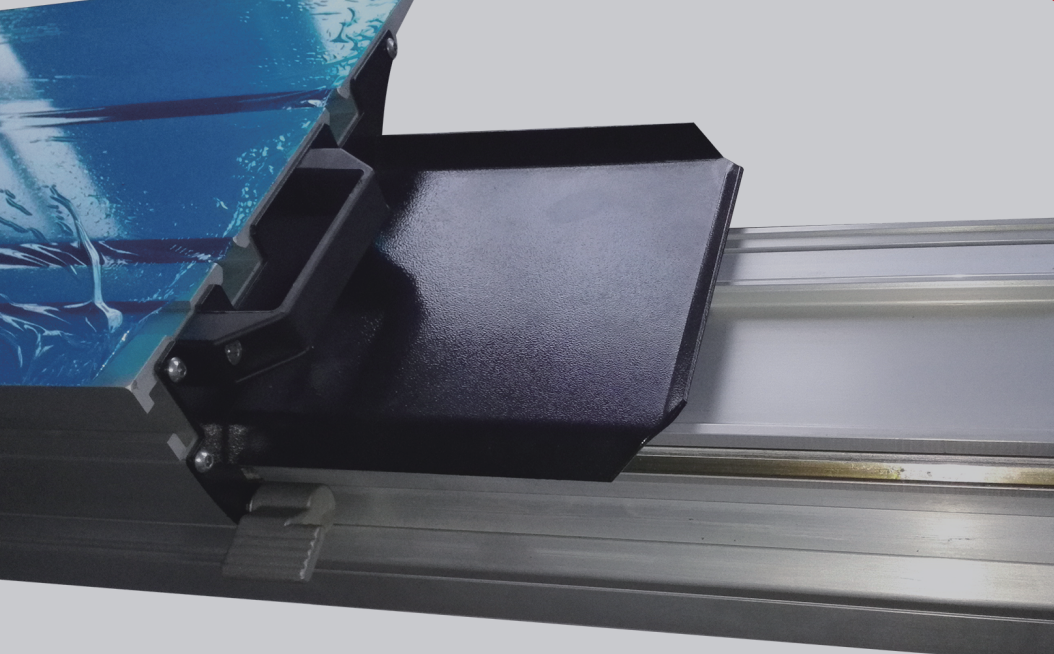

Accurate and durable sliding table 360mm
Strong motor power and perfect cutting quality
