HY375 EDGE BANDER

HY375 EDGE BANDER

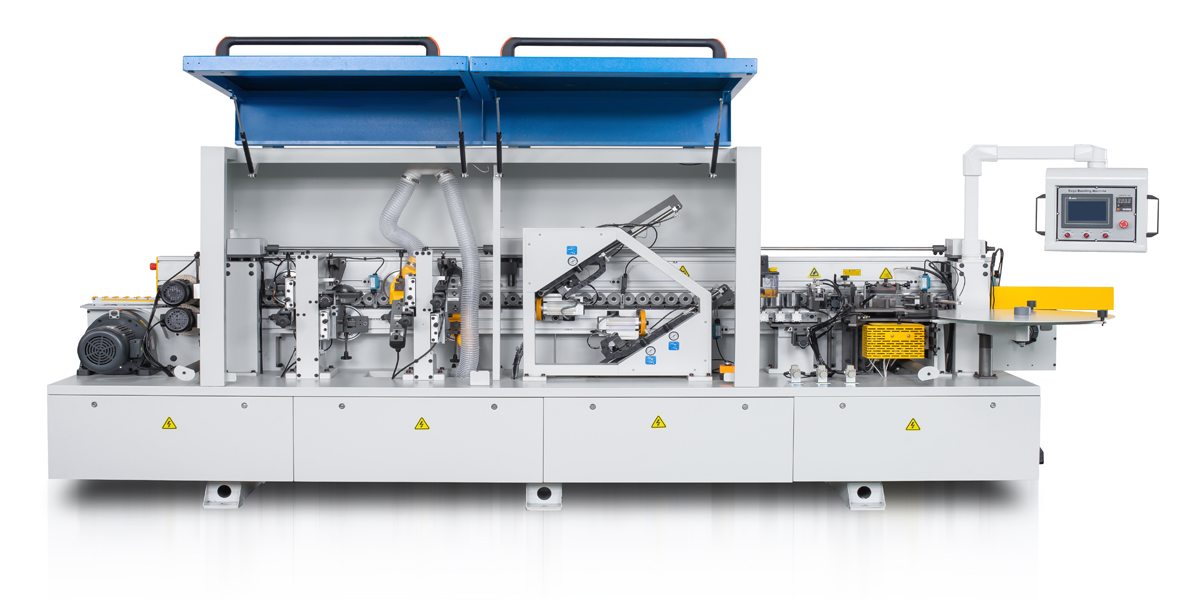

HY375 edge banding machine complete with faster end trimming  unit, allowing to process the panel perfectly , with a small investment.  It’s the right answer for the company that wants a professional edge banding.

1550KG

N.W

9.5KW

Power

4630*1000*1600mm

Oversize

REQUEST A QUOTE >

SPECIFICATION

ModelHY375
Panel widthMin80mm
Panel thickness10-60mm
Edge thickness0.4-3mm
Feeding speed12-20m/min
Air pressure0.6Mpa
N.W15500KG
Power9.5kw
Packing size4630*1000*1600m

STANDARD ACCESSORIES

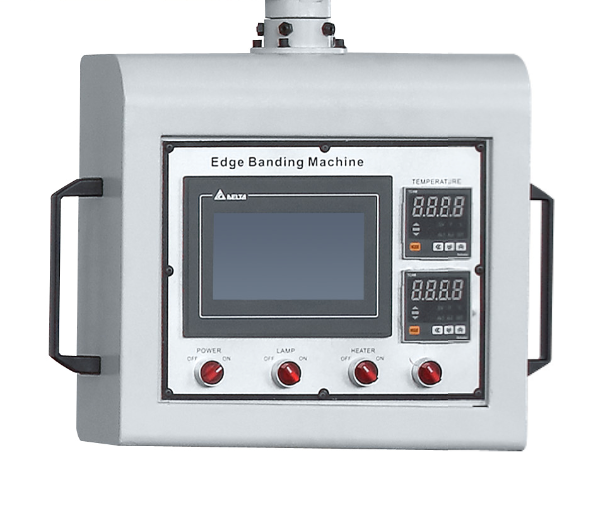

Touch screen system, which can be directly and conveniently

selected its main functions.faults can be reflected on the touch

screen,and easy to maintain.

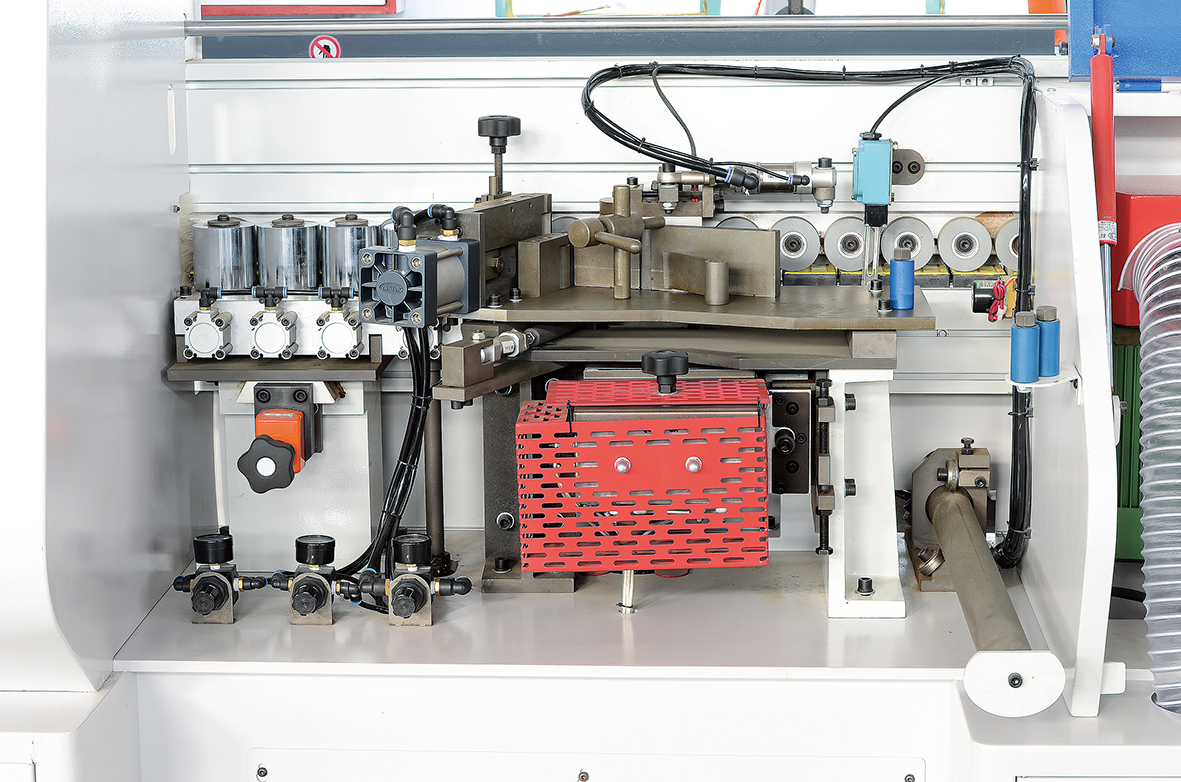

Door of the glue pot can be closed automatic ,preventing the glue

water blocked.Double spiral glue feeding system supply sufficient

glue feeding to the panel.

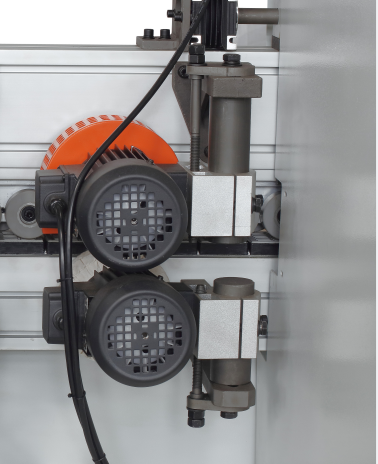

High speed motors make  sure end cutting stable and perfect .



Fine trimming

With two independent trimming unit with two high frequency motor

running at 12000rpm,2mm  radius tools are included as standard ,

also can be equipped with 3mm radius tools.



Scrapinh unit

The Radius surface  receives a light scraping removing any remnants

from the trimming process,ensuring a smooth finish.



Buffing unit

Effective clean the glue residue on the edge










GALLERY & VIDEO
