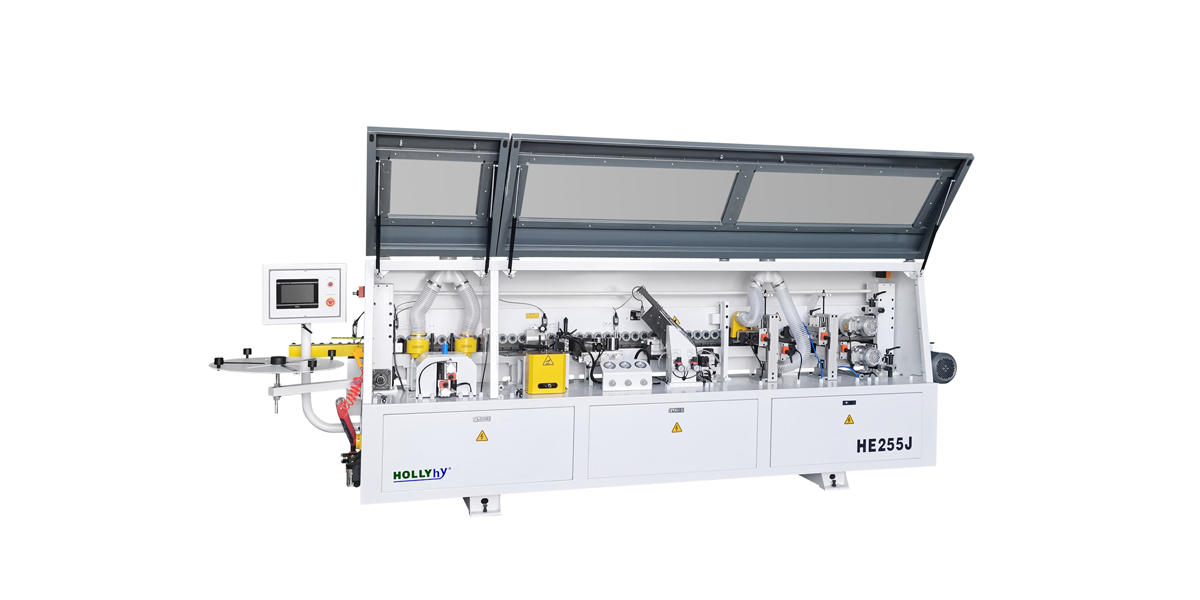

Economic and ease-of-use with all inclusive equipment: HE255 edge banding machine with european gluing structure ,the quick and easy change to other achieve colours, more faster feeding speed , Touch Control and optional R scrapping unit The features, coupled to its ease-of-use, makes it the perfect edge bander for small woodworking, furniture and panel processing companies. It belongs to a high productivity automatic edge bander with high quality performance.
Noroeste
Poder
Extra grande
| Model | HE255J |
|---|---|
| Panel length | Min80mm |
| Panel width | Min80mm |
| Panel thickness | 10-55mm |
| Edge thickness | 0.4-3mm |
| Feeding speed | 13m/min |
| Air pressure | 0.6Mpa |
| N.W | 900KG |
| Power | 9.2kw |
| Packing size | 3900*770*1370mm |

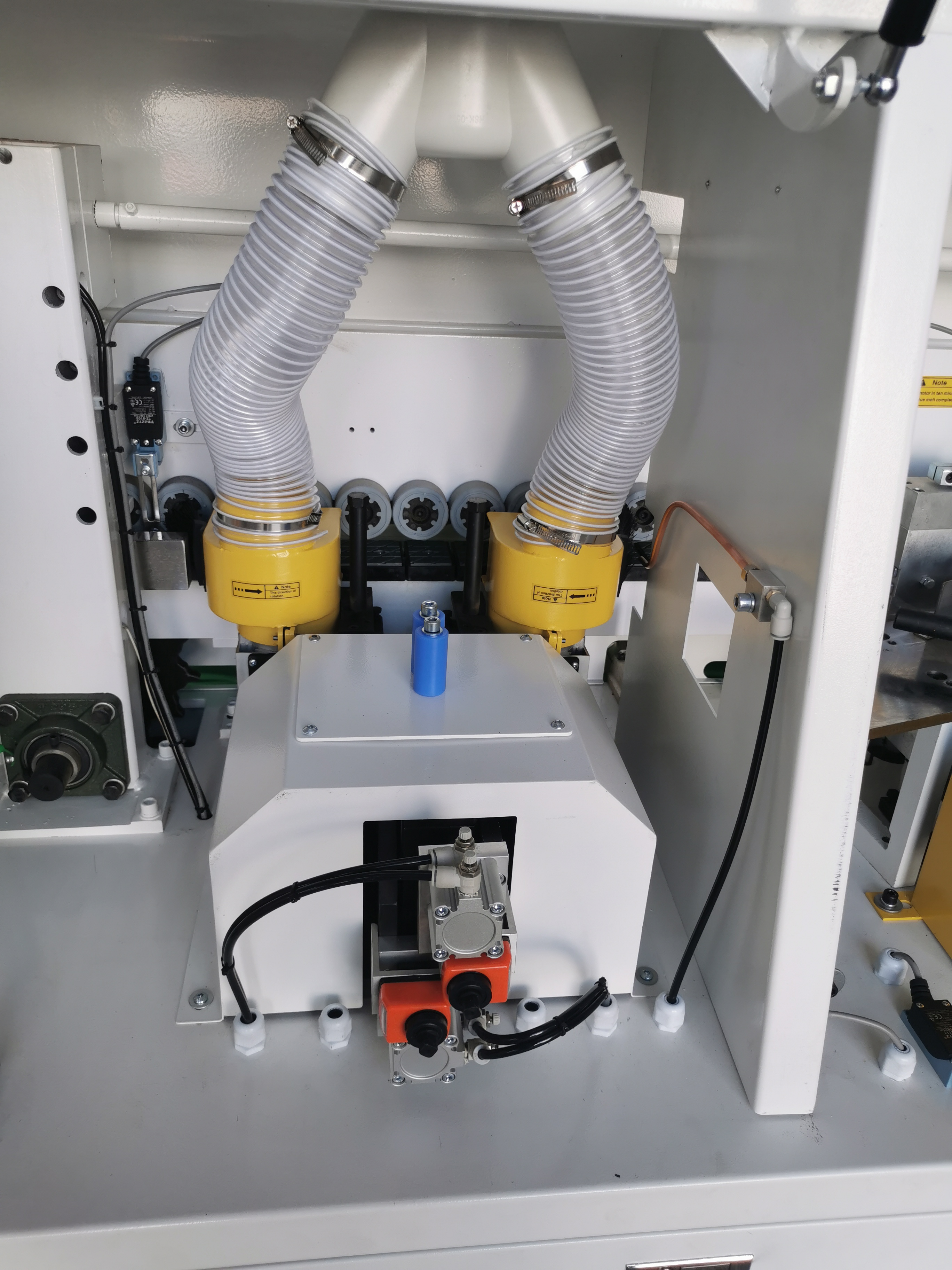

Pre-milling :with two siamond milling tool can make sure
the workpiece keep same size.
Glue pot：
End cutting :With two high speed motor with power 0.35kw
for each motor and high precision linear guide guarantee for
perfect cutting results.
Fine trimming :With two high speed motor ，adjustment
through the counter convenience and quickly.
Scraping:Removes any remaining glue residue from the
panel, leaving a perfect finish.
Buffing:effectively clean the glue residue on the edge
