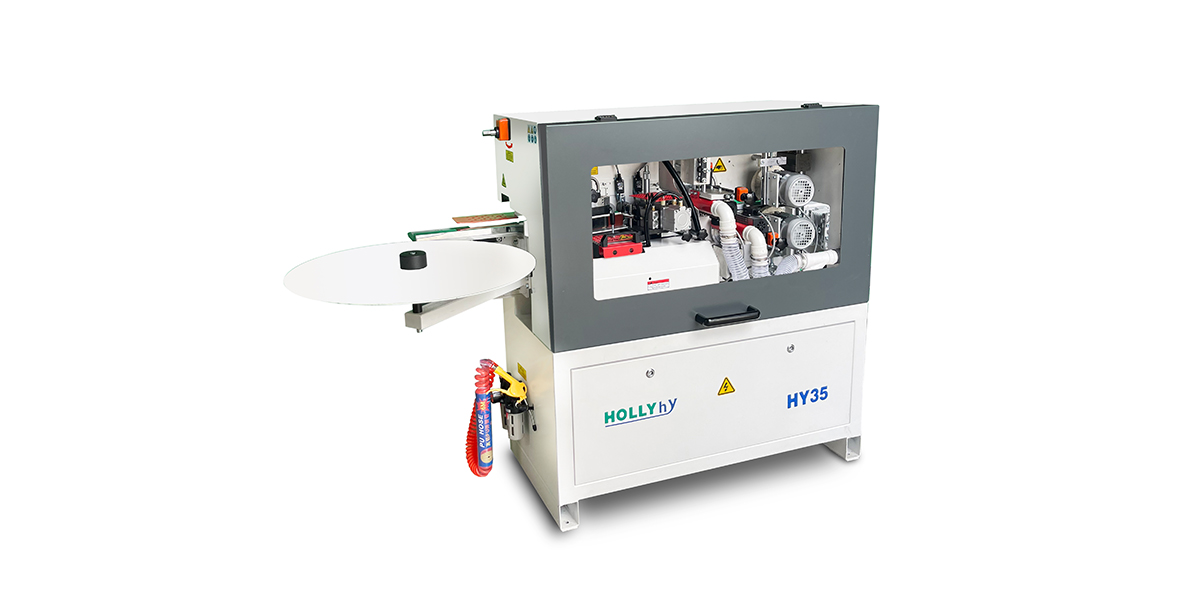

HY35 is the smallest edge bander machine with chain conveyor and with two trimming motor , it fits in Small and medium-sized furniture factory allowing high reliability of the equipment at a low cost, compact, light weight, high quality.
Noroeste
Poder
Extra grande
| Model | HY35 |
|---|---|
| Panel length | Min70mm |
| Panel width | Min80mm |
| Panel thickness | 12-43mm |
| Edge thickness | 0.4-2mm |
| Feeding speed | 7m/min |
| Air pressure | 0.6Mpa |
| N.W | 340KG |
| Power | 3.58kw |
| Oversize | 1985*1080*1230mm |
| Packing size | 2000*670*1260mm |

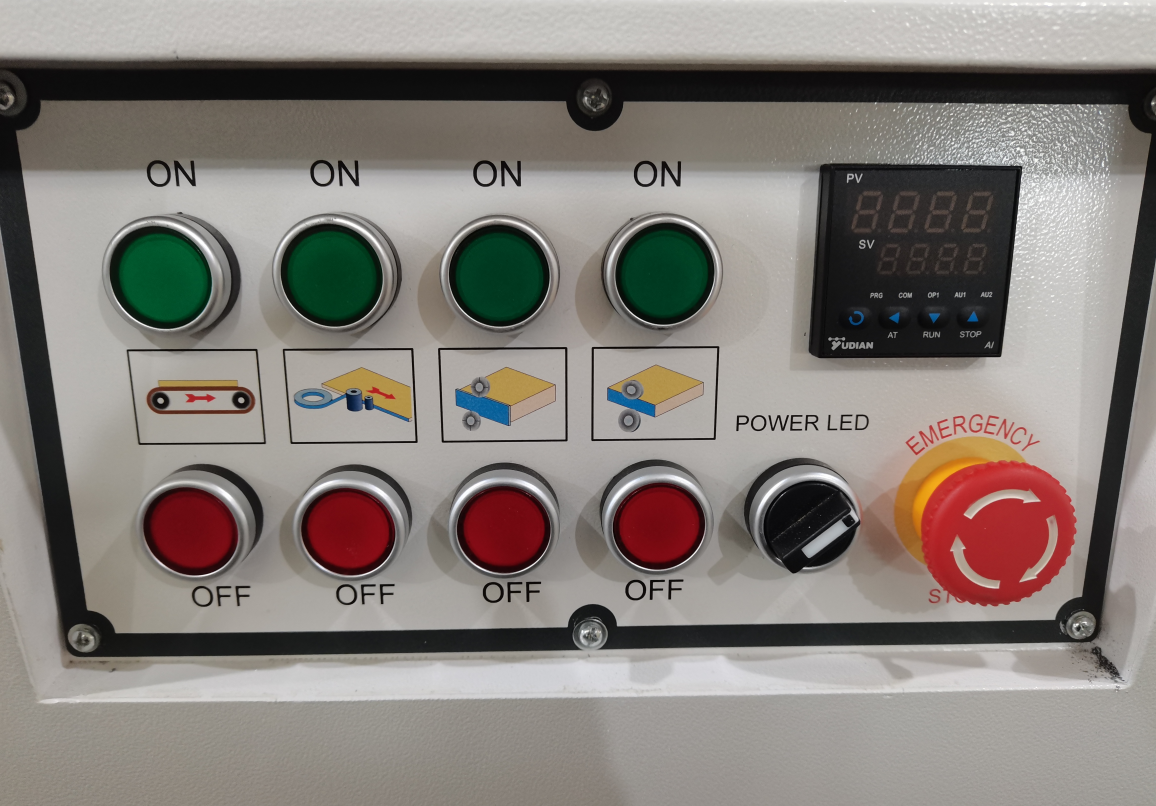

Control Panel:

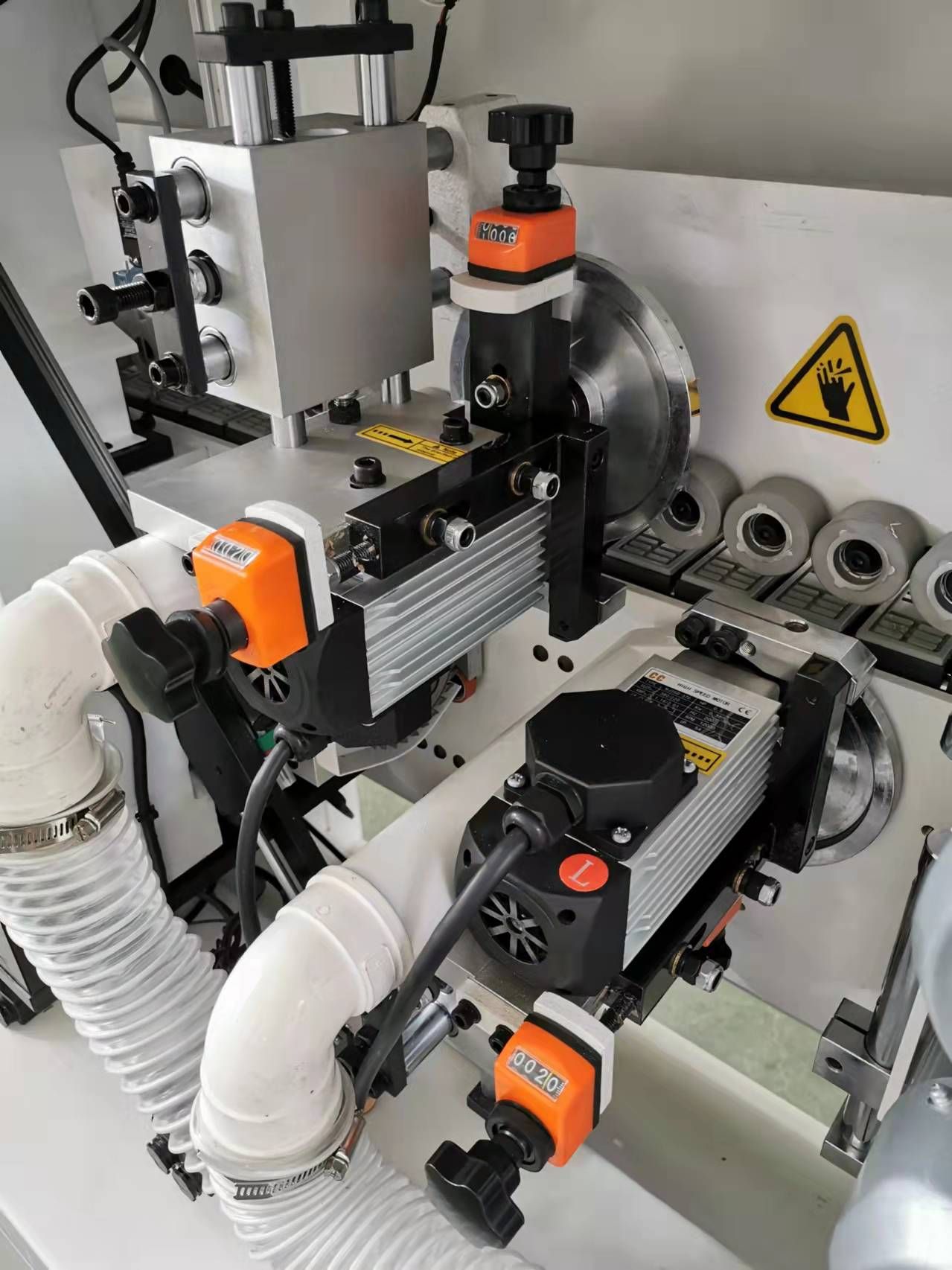

Fine trimming:

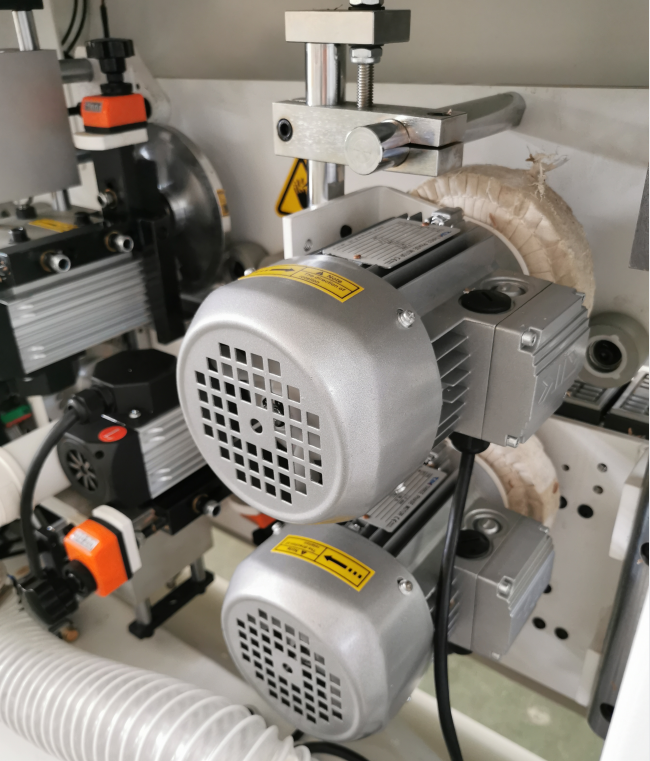

Buffing:
